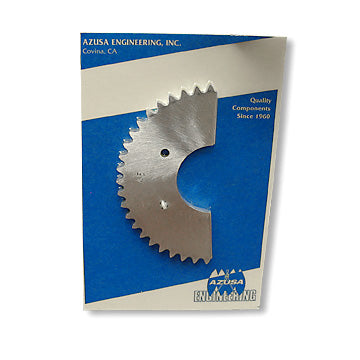

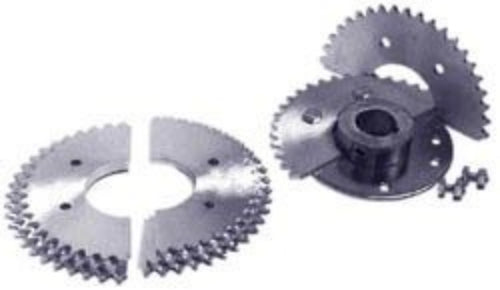

20XX #35 Aluminum Mini Sprocket, Split, 4-Bolt, Bolt Circles 3.228" and 2.875" Bolt Pattern P5223, TOOTH RANGE 37-52

20XX #35 Aluminum Mini Sprocket, Split, 4-Bolt, Bolt Circles 3.228" and 2.875" Bolt Pattern P5223, TOOTH RANGE 37-52

$14.00
$14.00
Sale Sold out
Shipping calculated at checkout.
Select number of Teeth
Parts | Catalog | Hotrod | Hubs

TNT Sprockets - smaller sizes
  • Strong .160 aircraft grade aluminum
  • #35 Pitch
  • 4-Bolt
  • Bolt Circle: 3.228"
  • Bolt Pattern: P5223
  • 37-52 teeth
  • Split, 2 Piece
Select number of teeth





ALUMINUM #35 SPROCKETS 2-piece

TEETH

PART

TEETH

PART

37

2084

45

2092

38

2085

46

2093

39

2086

47

2094

40

2087

48

2095

41

2088

49

2096

42

2089

50

2097

43

2090

51

2098

44

2091

52

2099




The Mini-Hub is great for use on Axles and Jackshafts

Sizes:

  • 2568 3/4" with 3/16" Keyway
  • 2561 1" with 1/4" Keyway
  • 2565 1-1/4"  with 1/4" Keyway

Has both 3.228" (1/4″) and 2.875 (3/8″) Diameter Bolt Circles.

Fastens with 2 Set Screws included with Mini-Hub.

1" Mini-Hub is used for the smaller #35 Aluminum Sprockets shown on this page. It can be installed on a an Axle, Crankshaft or Jackshaft.  It is drilled for both a 3.228 and 2.875 Bolt Circle. All the sprockets on this page will fit these hubs. Any sprockets we sell with a 3.228", 2.875 Bolt Circle or Bolt Pattern P5223 will fit on these Hubs
